Free-Standing Signage – 2020 Third Place Winner

Designer:
Westward Inn & Suites
Manufacturer:
TDH Experiential Fabricators
Submitter:
Alicia O’Connell
Client:
Westward Inn & Suites
Location:
Langley, B.C.

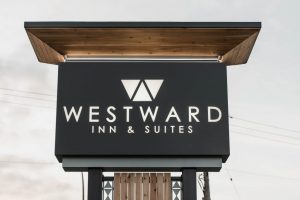

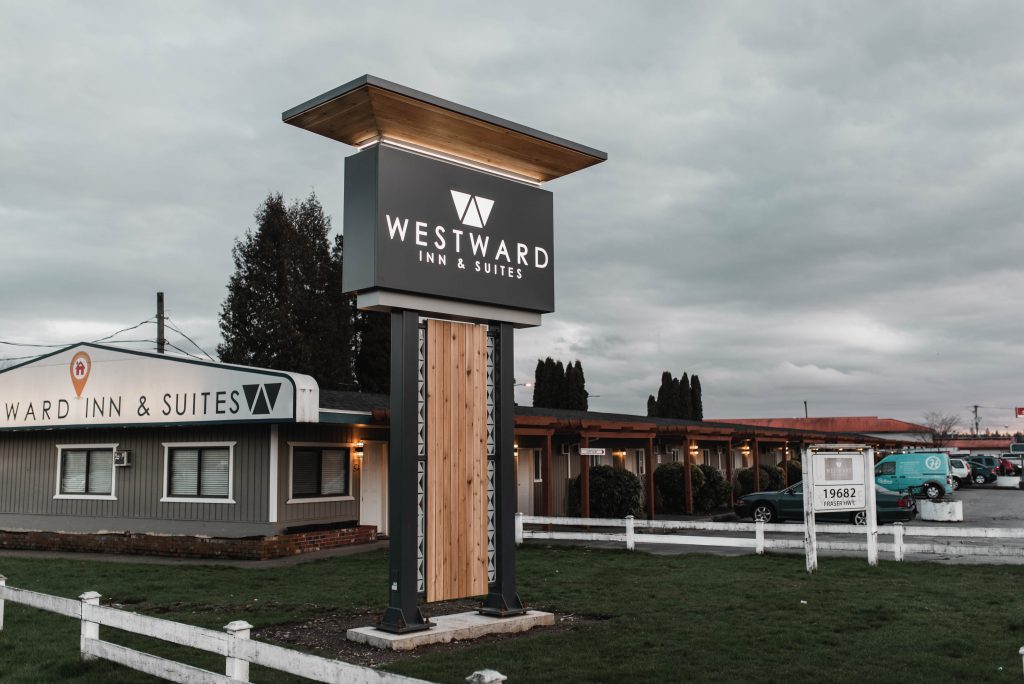

Materials and Methods:
